The SW4 Stereo Input/Output Switching Control

Goldpoint SW4

Need to select more music sources than your amplifier has input connectors for?
Here is your solution. The Goldpoint SW4 is also handy on any audio test/compare bench.


The SW4 was originally designed to provide additional Input selection for an amplifier which only had one set of stereo Input RCA jacks. However, it's reversable, so you could use it to send one Input set out to four different amplifiers.

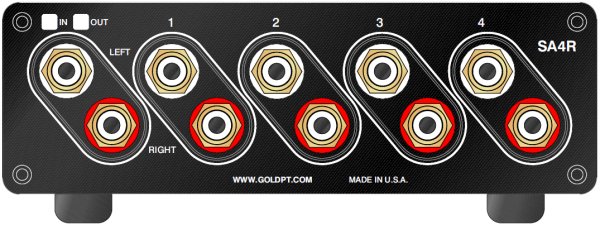

Selector Switch: Goldpoint 2P-4T-1D (This rear panel is the same one used on our SA4 Passive Preamp.)
AUX Input can be easily rewired (two internal wire jumpers) for an alternate functions:
1) Fourth Line Input (factory default).
2) Tape Output.
3) Main Output #2.



*** REVERSE IT! ***   Use as 1 IN - 4 OUT. (The rear panel labeling would be backwards, but it will work anyway:
The Main Out can be the single Input set while the four Input sets can be used as four Outputs.)
No rewiring necessary.

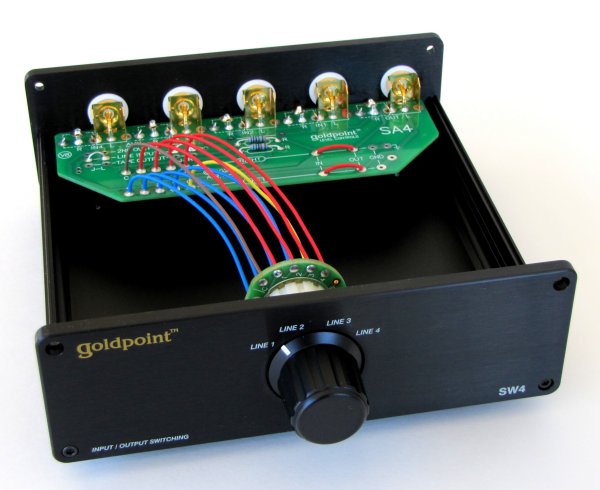

Wiring: High grade, silver-plated copper, multi-stranded, with Teflon jacketing.
Rear Panel RCA Jacks: Gold-plated, heavy duty solid brass, right angle PC board style.
Chassis: Aluminium clam-shell, 1/4" front and rear panels.
Dimensions: 2.3" Tall x 6.2" Wide x 7.0" Long
Weight: 1 1/4 lb.

Price:
Part Number RCA Input and Output Sets (reverseable)
Price
SW4 4 In and 1 Out (normal) - OR - 1 IN and 4 Out
$413
