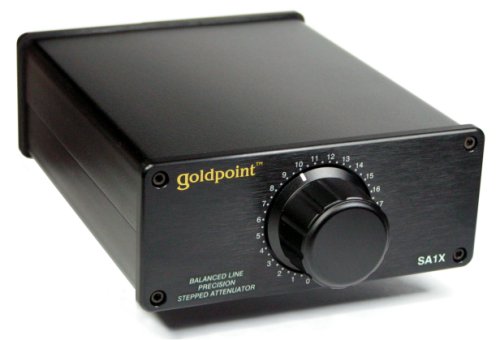

The SA1X
Passive Preamp - Precision Level Control
|
|
|
|
|
|
|
|
|
|
The
SA1X
level control was designed for Pro Audio balanced input applications. They
are commonly used as
precision
level controls between mixing consoles and amplified speakers in recording
studio monitoring rooms. |
|
|
|
No
distortion is added to your signal path while performing level control.
(Active
preamps add in at least
some distortion.) |
|
|
Goldpoint
precision, 4-section (balanced stereo) stepped attenuator for low noise
and excellent channel-to-channel signal level matching. |
|
|
Ultimate
sonic clarity and precision at a reasonable price. |
Inside the SA1X
Quad (Balanced Stereo) Mini-V
type Stepped Attenuator
|
Specifications: |
|
Stepped
Attenuator: Balanced Stereo 4-section Mini-V with precision,
0.1%,
25ppm, thin film resistors. |
|

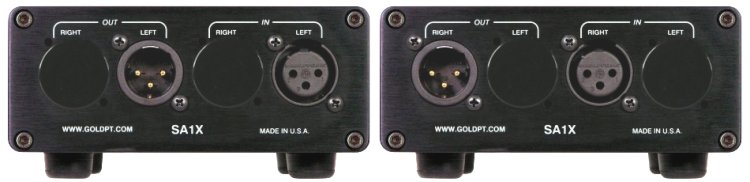

Inputs
& Outputs: One set of XLR Inputs and one set of XLR Outputs. |
|
Wiring: High
grade, silver-plated copper, multi-stranded, with Teflon jacketing. |
|

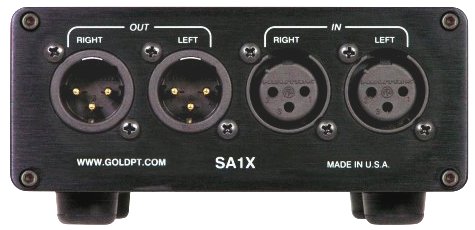

Rear
Panel Connectors: Neutrik XLR jacks with gold-plated pins. |
|
Dimensions:
2.3" Tall x 4.7" Wide x 6.6" Long |
|
Weight:
approx.: 1 1/4 lb. |
|
|
|
|
|
About
Stepped Attenuator Values:
We
usually put 25K stepped attenuators into our SA1, SA2,
and SA4 level controls. This value allows the greatest flexibility,
so these level controls can be used with nearly all solid-state and vacuum
tube gear. We usually put 10K stepped attenuators into our SA1X
and SA2X level controls as these controls are most commonly used
with amplified speakers (which have internal solid-state amplifiers). However,
if requested, we will ship your SA level control with any value stepped
attenuator you choose from our stocked values (5K, 10K, 20K, 25K, 50K,
or 100K). |
|
|
|
|
|
|
|
