The SA1 Passive Preamp
Goldpoint SA1

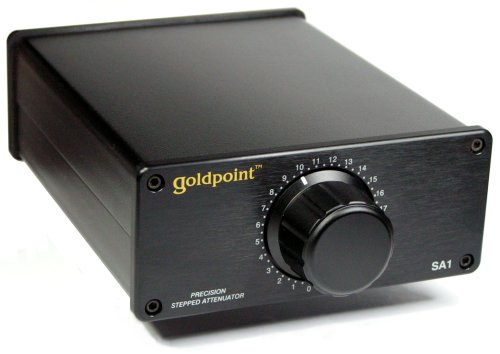

The Goldpoint SA1 is a "best sounding" no frills 100% passive preamplifier.
 The SA1's clarity, transparency and precision make it a perfect match for a
"purist" system - such as single CD or DVD player and a power amplifier.
No distortion is added to your signal path while performing level control.
(Active preamps add in at least some distortion.)
Goldpoint precision stepped attenuator for low noise and excellent channel-to-channel signal level matching.

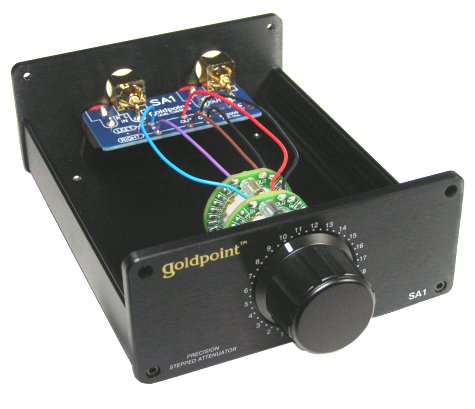

Inside the SA1

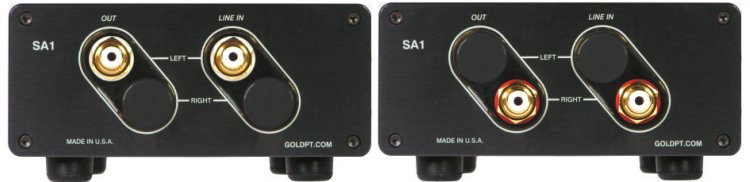

Occasionally someone wants an SA1-LR set. It is a two chassis set:
Each is a monaural unit, one Left channel, one Right.
Plastic hole plugs cover the unused RCA connector holes.


Volume Control:  Goldpoint Stereo Mini-V Stepped Attenuator with precision, low-noise 0.1%, thin film resistors.
Inputs & Outputs:  One set of Stereo Inputs and one set of Outputs.
Rear Panel RCA Jacks:  Gold-plated, heavy duty solid brass.
Wiring:  High grade, silver-plated copper, multi-stranded, with Teflon jacketing.
Chassis:  Aluminium clam-shell, sandblasted and black anodized, 1/4" front and rear panels.
Dimensions:   2.3" Tall  x  4.7" Wide  x  7.0" Long
Weight: 1 1/4 lb..

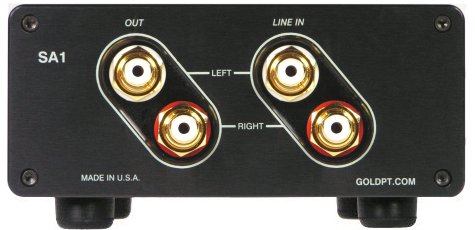

Heavy duty gold plated RCA
jacks are recessed into our
1/4" thick rear panels.

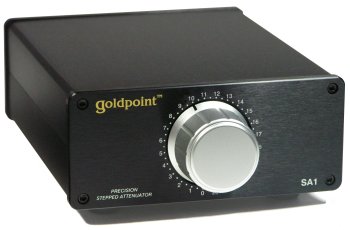

Silver knobs (instead of Black) are a free option on all
of our Passive Preamps/Precision Level Controls.
Just ask for Silver Knobs when ordering.
Prices:
Part Number Description
Price
SA1 Stereo Mini-V Level Control, 4.7" wide
$312
SA1-LR Left & Right Separate Enclosures,
Monaural Mini-V Level Controls
$484
About Passive Preamplifiers:
Installing an active preamplifier between a CD/DVD player and a power amplifier is not always the right thing to do. If your power amplifier has good input sensitivity and plenty of gain, an active preamplifier can act as unneeded, redundant amplification circuitry, degrading the overall system sound quality. It follows that removing unnecessary circuitry from your signal path can improve sound quality. A passive preamp is often all that is needed between a signal source and a power amplifier.
The precision stepped attenuators used in Goldpoint passive preamps are more transparent sounding than the typical potentiometers found in other preamps - active or passive. If you are serious about great sound quality and already have adequate signal amplitude, enjoy a passive preamp in your system, such as a superior sounding Goldpoint SA1, SA2, or SA4.
About Stepped Attenuator Values:
We usually put 25K stepped attenuators into our SA1, SA2, and SA4 Passive Preamps. The 25K value allows the greatest flexibility, so these units can be used with nearly all solid-state and vacuum tube gear. We usually put 10K stepped attenuators into our SA1X and SA2X Precision Level Controls as these controls are most commonly used with amplified speakers (which have internal solid-state amplifiers). However, if requested, we will ship your SA Passive Preamp / Precision Level Control with any value stepped attenuator you choose from our stocked values (5K, 10K, 20K, 25K, 50K, 100K, or 250K).
