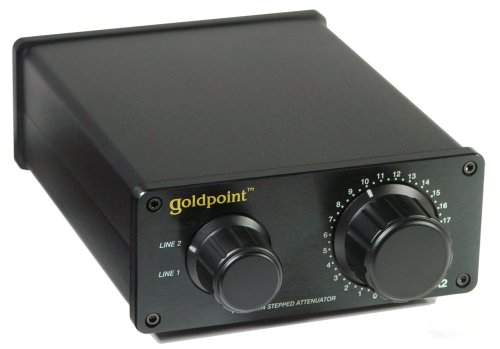

The SA2 Passive Preamp






SA2
Goldpoint SA2





SA2-HT

Goldpoint SA2-HT
Expect the Goldpoint SA2 to out perform other passive preamplifiers with its clarity,
transparency and precision. 100% passive, and with two selectable Inputs, the SA2 is
intended to provide superior sound quality even when replacing expensive active preamplifiers.
No distortion is added to your signal path while performing level control.
(Active preamps add in at least some distortion.)
Selector switch: 2-position (SA2), 3-position (SA2-HT) - for two signal sources.
Goldpoint precision stepped attenuator for low noise and excellent channel-to-channel signal level matching.
LINE IN 2 / AUX can be changed easily to be:
     1) Second Line Input (factory default).
     2) Tape Output.
     3) Main Output #2.
     4) HT Bypass front panel position (SA2-HT only)
  HT (Home Theater) Bypass is a method of allowing a hand-held remote control to be used instead of a knob adjusted volume control. All of the Goldpoint passive preamps allow this. But the SA2-HT, has an extra front panel switch position allowing you to completely bypass its volume control for the Line In 2 / AUX RCA input jack set -  (handy).
To accomplish the HT Bypass function with any other Goldpoint passive preamp, you would turn the volume control knob way up, use your DVD hand-held remote as the active volume control, and then when finished with the audio/video material, turn the passive preamp volume control knob back down to your normal level.

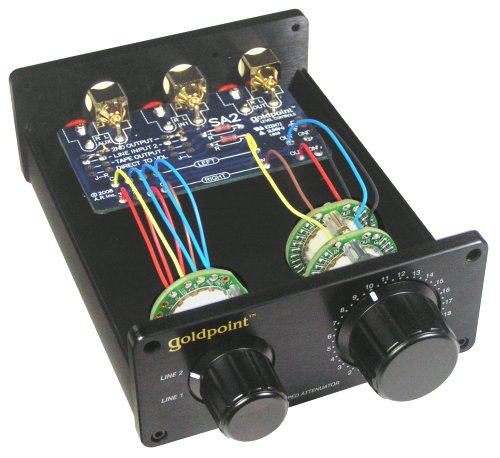

Inside the SA2
Volume Control:  Goldpoint Stereo Mini-V Stepped Attenuator, with precision 0.1%, thin film resistors.
Selector Switch:   Goldpoint 2P-2T-1D (SA2), or Goldpoint 4P-3T-1D (SA2-HT)
Inputs & Outputs:   Two Stereo sets of Inputs and one set of Outputs.
Rear Panel RCA Jacks:  Gold-plated, heavy duty solid brass, right angle PC board style.
Wiring:  High grade, silver-plated copper, multi-stranded, with Teflon jacketing.
Chassis:  Aluminium clam-shell, sandblasted and black anodized, 1/4" front and rear panels.
Dimensions:   2.3" Tall  x  4.7" Wide  x  7.0" Long
Weight: 1 1/2 lb..

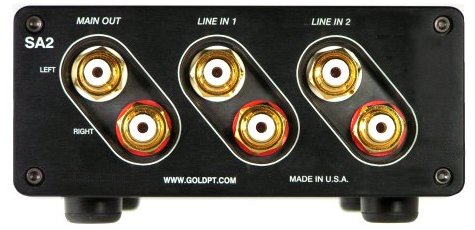

Heavy duty gold plated RCA jacks
are recessed into our 1/4" thick rear panels.
___________________________________________

Note: Silver knobs (instead of Black)
are a free option on all of our Passive Preamps,
Precision Level Controls, and Input/Output Switchers.
(Just ask for Silver Knobs when ordering.)

Price:
Part Number Description
Price
SA2 Stereo Mini-V Level Control, 4.7" Wide
$412
SA2-HT Stereo Mini-V Level Control, 4.7" Wide
$442

About Passive Preamplifiers:
Installing an active preamplifier between a CD/DVD player and a power amplifier is not always the right thing to do. If your power amplifier has good input sensitivity and plenty of gain, an active preamplifier can act as unneeded, redundant amplification circuitry, degrading the overall system sound quality. It follows that removing unnecessary circuitry from your signal path can improve sound quality. A passive preamp is often all that is needed between a signal source and a power amplifier.
The precision stepped attenuators used in Goldpoint passive preamps are more transparent sounding than the typical potentiometers found in other preamps - active or passive. If you are serious about great sound quality and already have adequate signal amplitude, enjoy a passive preamp in your system, such as a superior sounding Goldpoint SA1, SA2, or SA4.
About Stepped Attenuator Values:
We usually put 25K stepped attenuators into our SA1, SA2, and SA4 Passive Preamps. The 25K value allows the greatest flexibility, so these units can be used with nearly all solid-state and vacuum tube gear. We usually put 10K stepped attenuators into our SA1X and SA2X Precision Level Controls as these controls are most commonly used with amplified speakers (which have internal solid-state amplifiers). However, if requested, we will ship your SA Passive Preamp / Precision Level Control with any value stepped attenuator you choose from our stocked values (5K, 10K, 20K, 25K, 50K, 100K, or 250K).
