The SA2X and SA2XM Precision Balanced Level Controls

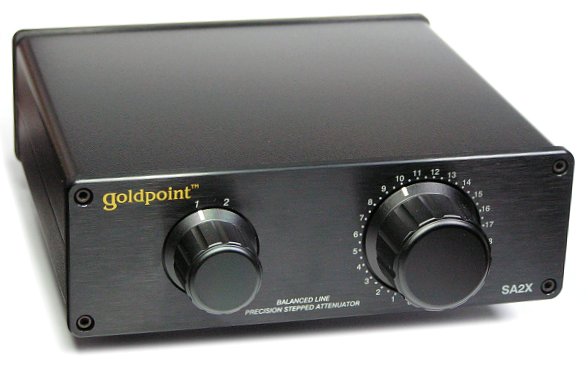

Goldpoint SA2X

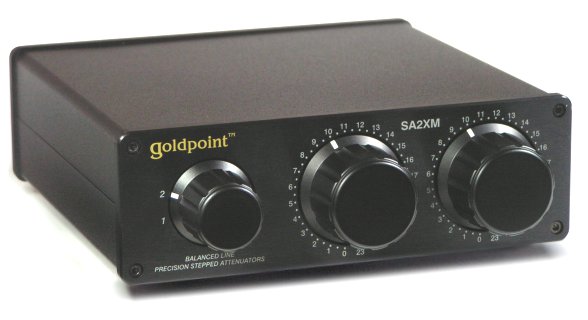

Goldpoint SA2XM

The SA2X (balanced stereo) and SA2XM (balanced dual mono) are exceptionally transparent
sounding precision level controls. Available with two selectable Inputs or two selectable
Outputs (see below), they were designed mainly for recording studio environments.


No distortion is added to your signal path while performing level control.
(Active preamps add in at least some distortion.)
2-position selector switch allows level control for 2 Signal Sources or 2 Outputs.
Available with Goldpoint fully Balanced Stereo (4 section) Precision Stepped Attenuator
or fully Balanced Dual Mono (2 section) Precision Stepped Attenuators
- for low noise and excellent channel-to-channel signal level matching.
Ultimate sonic clarity and precision at a reasonable price.

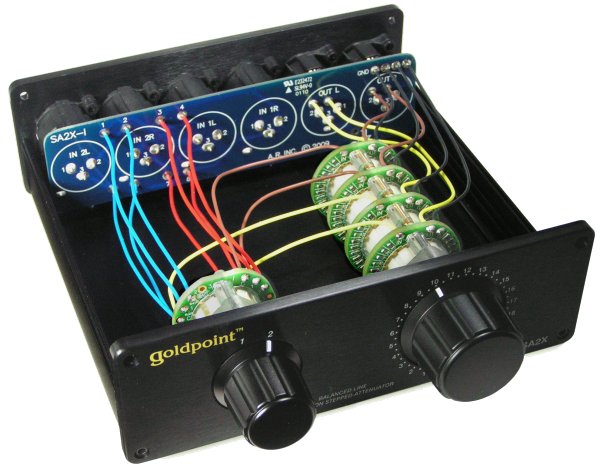

Inside the SA2X



Level Control:

SA2X-I and SA2X-O: Goldpoint precision Balanced Stereo 24 or 47 Position Stepped Attenuators..

SA2XM-I and SA2XM-O: Goldpoint precision Balanced Dual Mono 24 or 47 Position Stepped Attenuators.

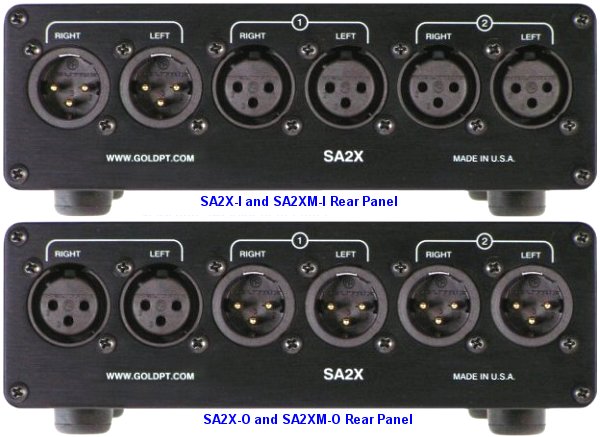

Connectors: Neutrik XLR, with gold-plated pins.
Selector Switch: Goldpoint 4P-2T-1D
Wiring: High grade, silver-plated copper, multi-stranded, with Teflon jacketing.
Chassis: Aluminium clam-shell, 1/4" front and rear panels.
Dimensions: 2.3" Tall x 6.2" Wide x 6.6" Long
Weight: 1 3/4 lb.

Prices:
Part Number Level Control, Inputs and Outputs
Price

SA2X-I Balanced Stereo 24-Position Stepped Attenuator,
2 XLR Input sets,1 XLR Output set
$661
SA2X-I-47 Balanced Stereo 47-Position Stepped Attenuator,
2 XLR Input sets,1 XLR Output set
$776

SA2X-O Balanced Stereo 24-Position Stepped Attenuator,
2 XLR Output sets, 1 XLR Input set
$661
SA2X-O-47 Balanced Stereo 47-Position Stepped Attenuator,
2 XLR Output sets, 1 XLR Input set
$776

SA2XM-I Balanced Dual Mono 24-Position Stepped Attenuators,
2 XLR Input sets, 1 XLR Output set
$728
SA2XM-I-47 Balanced Dual Mono 47-Position Stepped Attenuators,
2 XLR Input sets, 1 XLR Output set
$843

SA2XM-O Balanced Dual Mono 24-Position Stepped Attenuators,
2 XLR Output sets, 1 XLR Input set
$728
SA2XM-O-47 Balanced Dual Mono 47-Position Stepped Attenuators,
2 XLR Output sets, 1 XLR Input set
$843

Note about our knob dial pattern: The Goldpoint SA box front panel dial pattern shows the numbers 0 to 23, with a dot in between each adjacent number. When a 24-position stepped attenuator is installed, each knob position points to a number. When a 47-position stepped attenuator is installed, each knob position points to a number then a dot, alternately.
